美연구진 "해상풍력발전단지 어족자원 부정영향 없어"

북한산 종이호랭이 2022. 4. 25. 15:15
반응형





다라 월버(Dara Wilber) 미국 찰스턴 대학 해양 생물대학원 교수 연구진이 3월 29일 국제해양탐사협의회 해양과학 저널에 게재한 '북미 최초 해상풍력발전단지 건설, 운영과 어류와 무척추동물 어획량에 끼치는 영향' 이란 연구보고서에 따르면, 해상풍력단지가 어족자원에 끼치는 부정적 영향은 없으며 오히려 검은 농어 등 일부 어족자원은 늘었다고 결론 내었다고 한다.

Demersal fish and invertebrate catches relative to construction and operation of North America's first offshore wind farm



block Island 풍력 발전

반응형

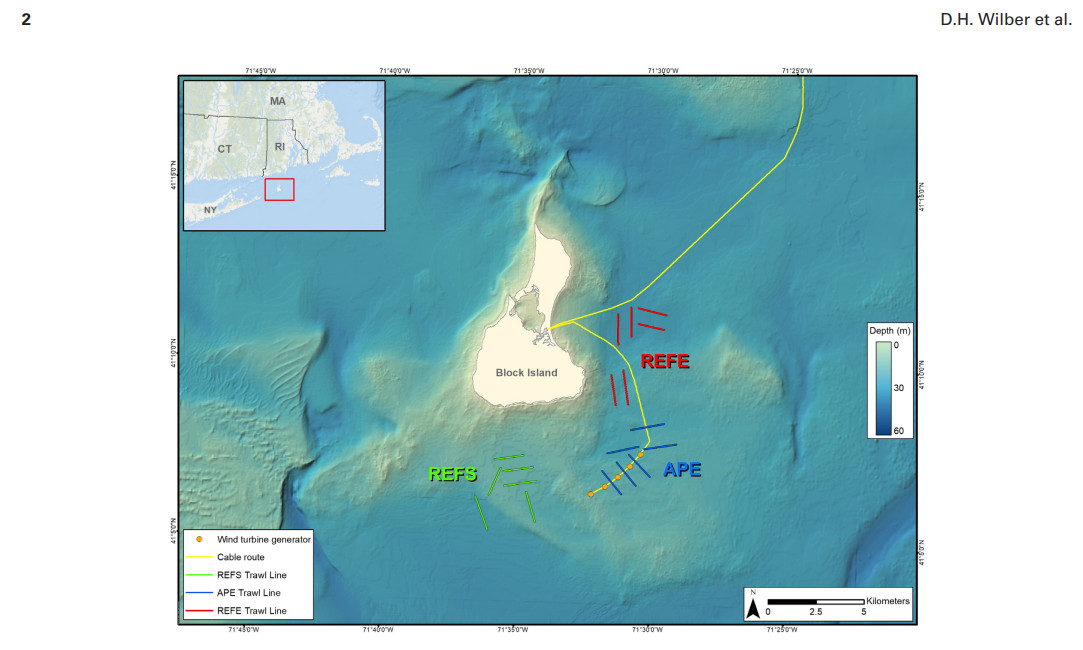

Block Island Wind Farm demersal fish trawl study area with the locations of the six fixed trawl lines in each survey area; the Area of Potential
Effect (APE), Reference Area South (REFS), and Reference Area East (REFE
각 조사 지역에 6개의 고정 트롤 라인의 위치가 있는 Block Island Wind Farm 해저 어인 트롤 연구 지역; 잠재력의 영역 효과(APE), 참조 영역 남쪽(REFS) 및 참조 영역 동쪽(REFE)





3월 29일 ICES 해양 과학 저널에 발표된 이 연구 는 Deepwater Wind의 자금 지원을 받았으며 나중에 덴마크에 기반을 둔 Ørsted가 인수했습니다. 로드 아일랜드 해안 규제 기관은 블록 아일랜드 풍력 발전 단지에 대한 승인의 일부로 연구가 수행되도록 명령했습니다. 풍력 발전 단지는 2016년 12월에 상업 운영을 시작했습니다. 이 연구에서는 터빈이 회전하기 전부터 사용하기까지 몇 년 동안의 데이터를 2012년부터 2019년까지 조사했습니다.

블록 아일랜드 풍력 발전소는 미국에서 해상 풍력의 타당성을 테스트하기 위한 소규모 시범 프로젝트였습니다. 앞으로 몇 년 동안 계획대로 진행된다면 동해안에서 수백 개의 터빈이 추가로 합류하게 될 것이며, 그 중 몇 개는 Ørsted에 속해 있습니다. 이러한 프로젝트는 때때로 상업 어업 업계의 우려를 불러일으켰습니다.

Ørsted의 북동부 정부 업무 및 시장 전략 책임자인 David Ortiz는 서로 충돌할 필요가 없다고 말했습니다.

Ortiz는 인터뷰에서 "이는 우리가 업계 전반으로 발전할 때 고려해야 할 매우 강력한 데이터 포인트입니다."라고 말했습니다.

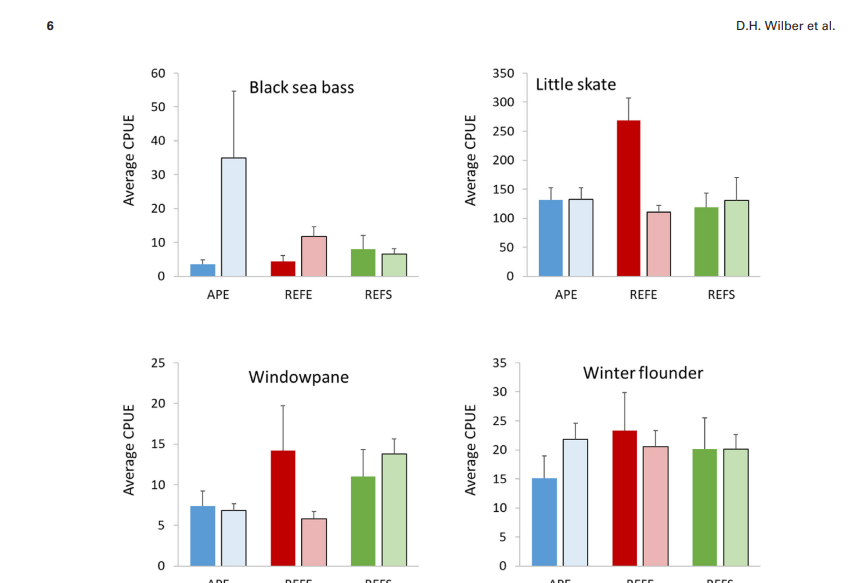

Average CPUE (monthly average abundance per tow) with standard error of black sea bass, little skate, windowpane, and winter flounder in
each survey area for the baseline (October 2012 through September 2014) and operation (October 2016 through September 2019) time periods (shaded
dark and light, respectively).
평균 CPUE(월별 평균 풍량)(흑어 농어, 작은 홍어, 창유리 및 동계 가자미의 표준 오차 포함) 기준선(2012년 10월~2014년 9월) 및 운영(2016년 10월~2019년 9월) 기간(음영)에 대한 각 조사 영역 각각 어둡고 밝음).

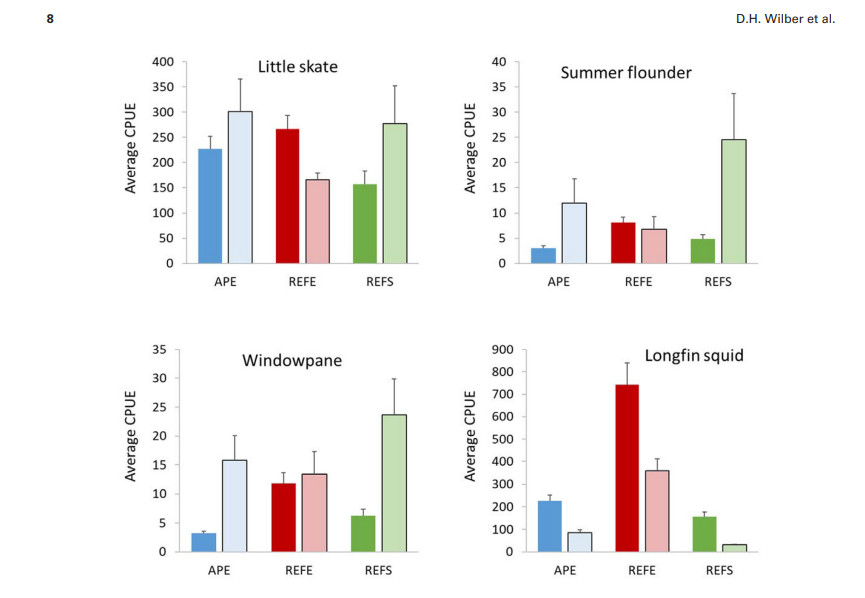

. Average CPUE with standard error of little skate, summer flounder, windowpane, and longfin squid in each survey area for the baseline (July
2013 through October 2013; July 2014 through October 2014) and construction phase I (July 2015 through October 2015) time periods (shaded dark and
light, respectively)
기준선에 대한 각 조사 지역의 작은 홍어, 여름 가자미, 창유리, 참다랑어 오징어의 표준 오차가 있는 평균 CPUE(7월 2013년부터 2013년 10월까지; 2014년 7월 ~ 2014년 10월) 및 건설 단계 I(2015년 7월 ~ 2015년 10월) 기간(어두운 음영 및 빛, 각각)

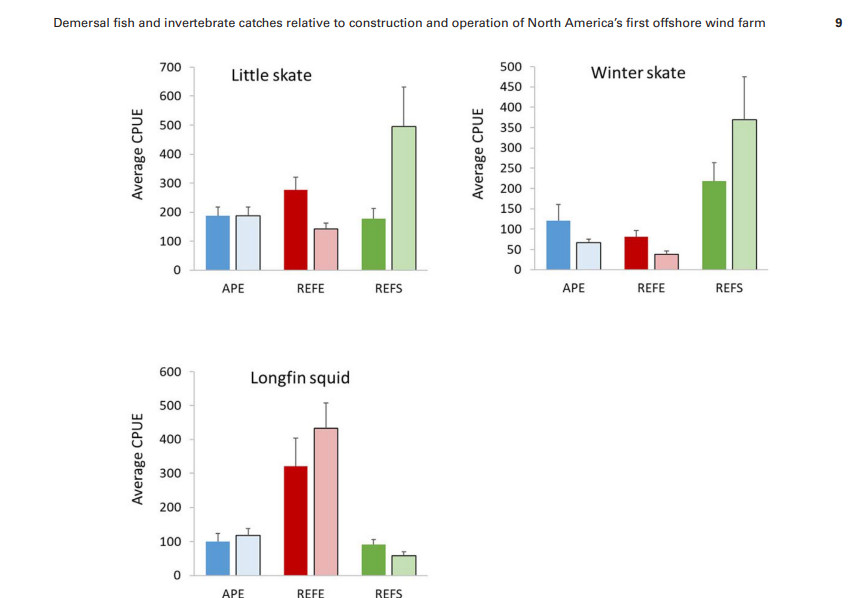

Average CPUE with standard error of little skate, winter skate, and longfin squid in each survey area for the baseline (April 2013 through
September 2013; April 2014 through September 2014) and construction phase II (April 2016 through September 2016) time periods (shaded dark and
light, respectively).
Average CPUE with standard error of little skate, winter skate, and longfin squid in each survey area for the baseline (April 2013 through September 2013; April 2014 through September 2014) and construction phase II (April 2016 through September 2016) time periods (shaded dark and light, respectively).

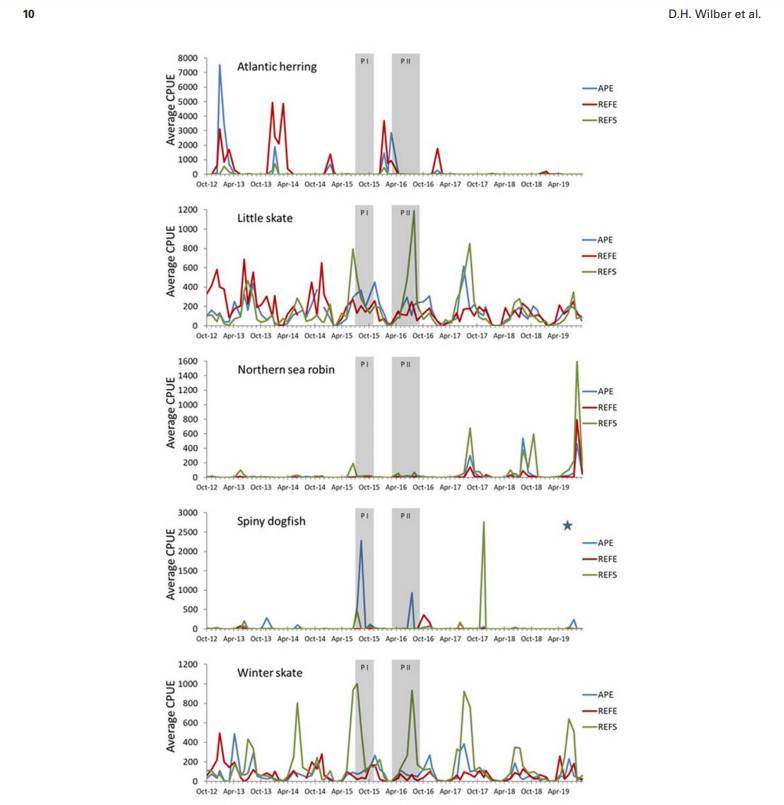

6. Average CPUE (catch/tow) for select species by project area across the seven-year study period. Gray bars depict the timing of construction
phase I (P I) and phase II (P II). The star on the spiny dogfish graph represents a catch at APE that was too large to bring onboard the vessel.
Average CPUE (catch/tow) for select species by project area across the seven-year study period. Gray bars depict the timing of construction phase I (P I) and phase II (P II). The star on the spiny dogfish graph represents a catch at APE that was too large to bring onboard the vessel.



7. Temporal trends in catches of select species collected in the BIWF demersal trawl survey near the wind farm (APE) at the two reference areas
(REF), and in the Northeast Fisheries Science Center (NEFSC) biannual bottom trawl survey in strata 3020 and 3450. Residual catch is the difference
between the seasonal CPUE and the overall average CPUE within each survey
Temporal trends in catches of select species collected in the BIWF demersal trawl survey near the wind farm (APE) at the two reference areas (REF), and in the Northeast Fisheries Science Center (NEFSC) biannual bottom trawl survey in strata 3020 and 3450. Residual catch is the difference between the seasonal CPUE and the overall average CPUE within each survey
fsac051.pdf
2.64MB

▲▲▲ 보고서 다운로드 ▲▲▲





이 연구의 저자에 따르면, 이는 미국에서 이러한 종류의 연구로는 처음이었습니다. 매달 FV 버지니아 마리즈(Virginia Marise)는 그 지역을 트롤링하여 갈은 물고기와 무척추동물을 모았습니다. 연구 설계는 환경 규제 기관과 상업 어업 자체와 함께 개발되었다고 저자들은 말합니다.

실제 어선을 상업용 장비로 사용했기 때문에 풍력 터빈 사이에서도 낚시가 가능하다는 것을 보여주었습니다. 그것은 해상 풍력에 대한 또 다른 우려 사항입니다. 물리적 장애물이 있을 수 있다는 것입니다. Block Island 풍력 터빈은 0.5 해리 떨어져 있습니다. 파이크를 내려오는 다른 프로젝트는 1해리 떨어져 있습니다. INSPIRE의 Carey는 이 연구에서 케이블에 걸리지 않고 터빈 사이를 트롤링할 수 있음을 보여주었다고 말했습니다.

(출처 : https://www.bostonglobe.com/2022/04/14/metro/block-island-wind-farm-hasnt-harmed-fish-populations-industry-funded-study-shows/ )





















<국내기사>



https://n.news.naver.com/article/018/0005199594



美연구진 “해상풍력발전단지 어족자원 부정 영향 없어”

[이데일리 김형욱 기자] 미국에서 자국 해상풍력발전단지가 어족자원에 부정적 영향을 주지 않았다는 연구조사 결과가 나왔다. 오히려 검은 농어가 단지 주변에 모여드는 등 일부 어족자원에는

n.news.naver.com





<연구 자료 원문 PDF>

Demersal fish and invertebrate catches relative to construction and operation of North America’s first offshore wind farm

fsac051.pdf
2.64MB
